Unused 4142 sq. ft. 316L Stainless steel heat exchanger. Mfg. by Wuxi Chemical Equipment. 23 Design duty (MMBTU/Hr). 316L SS Shell Design Rating: 150/FV psig @ 330 deg. F. 316L SS Cladded Tube Design Rating: 195/FV psig @ 300 deg. F. Shell mawp 280.1/FV psig @ 330 deg. F. Tube mawp 280.1//fV psig @ 300 deg. F. 44" X 198". Serial #WHA22-033-1 National Board #542. Built 2023. Lean/Rich Amine Exchanger. Under Nitrogen Purged.

Unused 2521 sq. ft. Carbon Steel horizontal heat exchanger. 26.4 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). Shell Design Rating: 180/FV psig @ 320/300 deg. F. Tube Design Rating: 232/FV psig @ 430/300 deg. F. Shell mawp 222.1/FV psig. Tube mawp 306.5/FV psig. 35"/53"" X 242". Serial #WHA22-013-1. National Board #532. Built 2023. LP AGR1 Amine Regen Reboiler. Under Nitrogen Purge.

Unused 1,826 sq. ft. Carbon Steel horizontal heat exchanger. 14.73 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). Shell Design Rating: 95/FV psig @ 300 deg. F. Tube Design Rating: 120 psig @ 150 deg. F. Shell mawp 184.3/FV psig @ 300 deg. F. Tube mawp 184.3 psig @ 150 deg. F. 34" X 156". Serial #WHA22-016-1-1. National Board #556. Built 2023. Lean Amine Cooler. Under Nitrogen Purged.

Unused 1,826 sq. ft. Carbon Steel horizontal heat exchanger. 14.73 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). Shell Design Rating: 95/FV psig @ 300 deg. F. Tube Design Rating: 120 psig @ 150 deg. F. Shell mawp 184.3/FV psig @ 300 deg. F. Tube mawp 184.3 psig @ 150 deg. F. 34" X 156". Serial #WHA22-016-1-2. National Board #557. Built 2023. Lean Amine Cooler. Under Nitrogen Purged.

Unused 1795 sq. ft. 316L Stainless steel horizontal heat exchanger. 14.66 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). 316L SS Shell Design Rating: 135/FV psig @ 320 deg. F. 316L Cladded Tube Design Rating: 170/FV psig @ 300 deg. F. Shell mawp 221/FV psig @320 deg. F. Tube mawp 227/FV psig @ 300 deg. F. 31" X 190". Serial #WHA22-014-1-1. National Board #552. Built 2023. AGR1 Lean/Rich Amine Exchanger. Under Nitrogen Purged.

Unused 1795 sq. ft. 316L Stainless steel horizontal heat exchanger. 14.66 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). 316L SS Shell Design Rating: 135/FV psig @ 320 deg. F. 316L Cladded Tube Design Rating: 170/FV psig @ 300 deg. F. Shell mawp 221/FV psig @320 deg. F. Tube mawp 227/FV psig @ 300 deg. F. 31" X 190". Serial #WHA22-014-1-2. National Board #553. Built 2023. AGR1 Lean/Rich Amine Exchanger. Under Nitrogen Purged.

Unused 1234 sq. ft. Carbon steel heat exchanger. Mfg. by Wuxi chemical Equipment in 2023. 7.6 Design duty (MMBTU/Hr). Shell Design Rating: 250/FV psig @ 725 deg. F. Tube Design Rating: 325/FV psig @ 680 deg. F. Shell mawp 380.1/FV psig @ 725 deg. F. Tube mawp 475.8/FV psig @ 680 deg. F. 30" X 144". Serial # WHA22-021-1. National Board #539. Product Fractionator Feed/Bottoms Exchanger No. 2. Under Nitrogen Purge

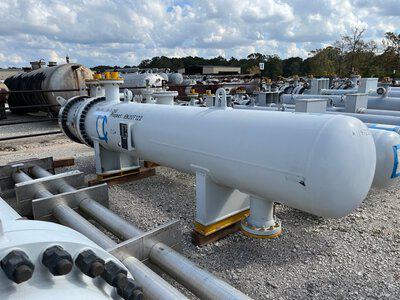

Unused 1121 sq. ft. Hastelloy C276 heat exchanger Built by Wuxi Chemical Equipment in 2023. 14.275 Design duty (MMBTU/Hr). Shell Design Rating: 120 psig @ 150 deg. F. (472) 0.75"OD Hastelloy C276 Tubes Design Rating: 95/FV psig @ 300/300 deg. F. Shell mawp 326.8 psig @ 150 deg. F. Tube mawp 95.04 psig @ 300 deg. F. 29" X 144". National Board #550. Serial #WHA2-091-1. Built 2022. Ammonia Stripper Overhead Condenser. Under Nitrogen Purge.

Unused 1055 sq. ft. carbon steel heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 6.214 Design duty (MMBTU/Hr). Shell Design Rating: 232/FV psig @ 480 deg. F. Tube Design Rating: 200/FV psig @ 380 deg. F. Shell mawp 527.5/FV psig @ 430 deg. F. Tube mawp 379.6/FV psig @ 380 deg. F. 23.5" X 16'11". Serial # WHA22-086-1. National Board #563. Acid gas stripper reboiler. Under Nitrogen Purged.

Unused 1,049 sq. ft. Carbon Steel heat exchanger. Mfg. by Wuxi Chemical Equipment. 5.1 Design duty (MMBTU/Hr). Shell Design Rating: 250/FV psig @ 550 deg. F. Tube Design Rating: 325/FV psig @ 700 deg. F. Shell mawp 279/FV psig @ 550 deg. F. Tube mawp 368/FV psig @ 700 deg. F. 36" X 78". Serial #WHA22-016-1. National Board #509. Built 2023. Jet Side-Cut Stripper Reboiler. Under Nitrogen Purged.

Unused 979 sq. ft. Carbon Steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment. 2.32 Design duty (MMBTU/Hr). Shell Design Rating : 150 psig @ 190 deg. F. Tube Design Rating: 120/FV psig @ 150/300 deg. F. Shell mawp 297 psig @ 190 deg.F. Tube mawp 214.88/FV psig @ 150 deg. F. 25" X 168". Serial #WHA22-031-1. National Board #508. Caustic Dilution Cooler. Under Nitrogen Purged.

Unused 915 sq. ft. 316L Stainless Steel horizontal heat exchanger. 3.542 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). 316L SS Cladded Shell Design Rating: 135/FV psig @ 320 deg. F. 316L SS Tube Design Rating: 175/FV psig @ 300 deg. F. Shell mawp 222.5/FV psig @320 deg. F. Tube mawp 227.8/FV psig @ 300 deg. F. 19.5" X 126". Serial #WHA22-015-1-1. National Board #554. Built 2023. AGR2 Lean/Rich Amine Exchanger. Under Nitrogen Purged.

Unused 915 sq. ft. 316L Stainless Steel horizontal heat exchanger. 3.542 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). 316L SS Cladded Shell Design Rating: 135/FV psig @ 320 deg. F. 316L SS Tube Design Rating: 175/FV psig @ 300 deg. F. Shell mawp 222.5/FV psig @320 deg. F. Tube mawp 227.8/FV psig @ 300 deg. F. 19.5" X 126". Serial #WHA22-015-1-2. National Board #555. Built 2023. AGR2 Lean/Rich Amine Exchanger. Under Nitrogen Purged.

Unused 872 sq. ft. Duplex 2205 SS vertical heat exchanger. Mfg. by Wuxi Chemical Equipment (China) in 2023. 11.473 Design duty (MMBTU/Hr). Shell Design Rating: 232/FV psig @ 430/300 deg. F. Duplex 2205 Tube Design Rating: 180/FV psig @ 380/300 deg. F. Shell mawp 527.5/FV psig @ 430 deg. F. Tube mawp 373.2/FV psig @ 400 deg. F. 21.25" X 144". Serial #WHA22-089-1. National Board #559. Ammonia stripper reboiler. Under Nitrogen Purged.

Unused 850 sq. ft. Carbon steel horizontal heat exchanger. 7.1 x 1.1 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). Shell Design Rating: 550/FV psig @ 475 deg. F. Tube Design Rating: 425/FV psig @ 650 deg. F. Shell mawp 602.9/FV psig @ 475 deg. F. Tube mawp 549.5/FV psig @ 650 deg. F. 23" X 156". Serial #WHA22-020-1. National Board #511. BFW Preheater. Under Nitrogen Purge

Unused 791 sq. ft. Carbon steel heat exchanger. Mfg. by Wuxi Chemical Equipment. 2.2 Design duty (MMBTU/Hr). Shell Design Rating: 550/FV psig @ 490 deg. F. Tube Design Rating: 425/FV psig @ 150 deg. F. Shell mawp 607.4/FV psig @ 490 deg. F. Tube mawp 709.2/FV psig @ 150 deg. F. 22.6" X 180". Serial #WHA22-019-1. National Board #510.Built 2023. Vapor Cooler. Under Nitrogen Purged.

Unused 767 sq. ft. Carbon steel heat exchanger. Mfg. by Wuxi chemical Equipment in 2023. 1.928 Design duty (MMBTU/Hr). Shell Design Rating: 150/FV psig @ 300/300 deg. F. Tube Design Rating: 120 psig @ 150 deg. F. Shell mawp 557/FV psig @ 300 deg. F. Tube mawp 147 psig @ 150 deg. F. 21.125" X 162". Serial #WHA22-090-1. National Board #556. Built 2023. Inlet Cooler. Under Nitrogen Purged.

Unused 669 sq. ft. Carbon Steel horizontal heat exchanger. 6.82 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). Shell Design Rating: 304/FV psig @ 340 deg. F. Tube Design Rating: 232/FV psig @ 430 deg. F. Shell mawp 478.2/FV psig @340 deg. F. Tube mawp 477.8/FV psig @ 430 deg. F. 29" X 84". Serial #WHA22-022-1. National Board #540. Built 2023. Stripper Reboiler. Under Nitrogen Purge

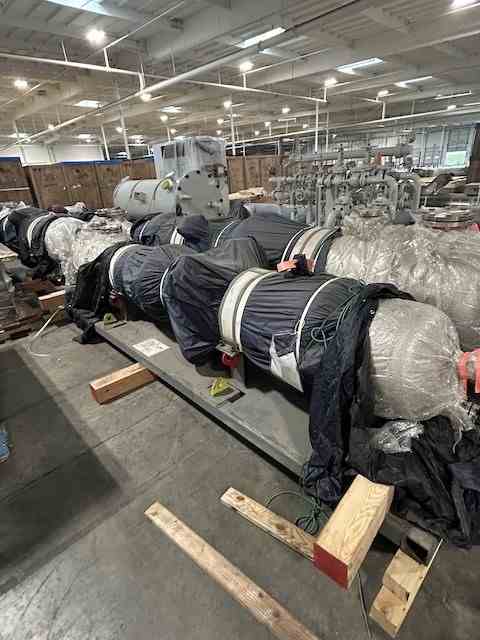

Unused 650 sq. ft. 304 Stainless Steel vertical heat exchanger. Mfg. by Wuxi Zhicheng Biochemical Eng. 1.8 Design duty (MMBTU/Hr). Shell Design Rating: 147/FV psig @ 428 deg. F. (336) 19.05mm Tube Design Rating: 174/FV psig @ 428 deg. F.; 20" x 10'0". Oil/Steam heat exchanger. With Expansion Joint. Empty weight 3954 lb. National Board #152. Serial #WZA21-22. Built 2021. Under Nitrogen Purge

Unused 650 sq. ft. 304 Stainless Steel vertical shell and tube heat exchanger. Manufactured by Wuxi Zhicheng in 2021. 1.8 Design duty (MMBTU/Hr). 304 SS Shell Design Rating: 147/FV psig @ 428 deg. F. 304 SS Tube Design Rating: 174/FV psig @ 428 deg. F. Dimensions 20" x 10'0". Designed as Oil/Steam heat exchanger. With Expansion Joint. Under Nitrogen Purge. Serial #WZA21-23; NB #153.

Unused 569 sq. ft. Carbon Steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 1.625 Design duty (MMBTU/Hr). Shell Design Rating: 200/FV psig @ 300 deg. F. Tube Design Rating: 155 psig @ 300 deg. F. Shell mawp 654.4/FV psig @ 300 deg. F. Tube mawp 556.91/FV psig @ 300 deg. F. 5.25" X 210". Serial # WHA22-165-1; National Board #549. HGU condensate trim cooler (for HGU feed). Under Nitrogen Purge.

Unused 493 sq. ft. 316L SS Cladded horizontal heat exchanger. 5.39 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China). 316L Clad Shell Design Rating: 180/FV psig @ 320 deg. F. Duplex 2205 SS Tube Design Rating: 232/FV psig @ 430 deg. F. Shell mawp 222.6/FV psig @320 deg. F. Tube mawp 361.1/FV psig @ 430 deg. F. 23.25"/40" X 180". Serial #WHA22-017-1. National Board #533. Built 2023. AGR2 Amine Regen Reboiler. Under Nitrogen Purged.

Unused approx 420 sq ft TP304L Stainless Steel vertical shell and tube heat exchanger. Manufactured by Wuxi Zhicheng Biochemical Engineering Equipment Co., Ltd. (324) 19.05mm OD x 2000mm L tubes rated 116PSI/FV@220C. SA240 Shell MAWP 175PSI/FV @220C. Lug moutned. Serial #WZA21-27. National Board #154. Built 2021.

Unused 367 sq. ft. CS horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 2.05 Design duty (MMBTU/Hr). Shell Design Rating : 170 psig @ 150 deg. F. Tube Design Rating: 215/FV psig @ 330 deg. F. Shell mawp 622.8 psig @ 150 deg. F. Tube mawp 517.1/FV psig @ 330 deg. F. 15.25" X 168". Serial# WHA22-088-1. National Board #548. Stripped water cooler. Under Nitrogen Purged.

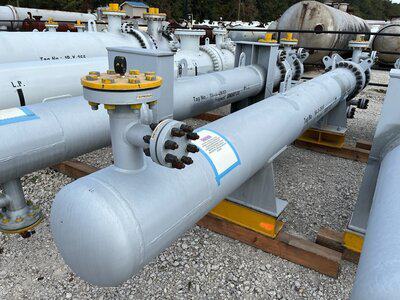

Unused 333 sq. ft. Duplex 2205 SS horizontal heat exchanger. 7.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2023. Shell Design Rating: 370/FV psig @ 300 deg. F. Tube Design Rating: 285/FV psig @ 330 deg. F. Shell mawp 662.3/FV psig @300 deg. F. Tube mawp 288.3/FV psig @ 330 deg. F. 5.5" X 16'7.5". Serial # WHA22-087-2-1-A. National Board #571. Feed/Effluent exchanger. Under Nitrogen Purged.

Unused 333 sq. ft. Duplex 2205 Stainless steel horizontal heat exchanger. 7.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2023. Shell Design Rating: 370/FV psig @ 300 deg. F. Tube Design Rating: 285/FV psig @ 330 deg. F. Shell mawp 662.3/FV psig @ 300 deg. F. Tube mawp 288.3/FV @ 330 deg. F. 15.5" X 16'7.5". Serial# WHA22-087-2-1-B. National Board #572. Feed/Effluent exchanger. Under Nitrogen Purged.

Unused 333 sq. ft. Duplex 2205 SS horizontal heat exchanger. 7.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2023. Shell Design Rating: 370/FV psig @ 300 deg. F. Tube Design Rating: 285/FV psig @ 330 deg. F. Shell mawp 662.3/FV psig @ 300 deg. F. Tube mawp 288.3/FV @ 330 deg. F. 15.5" X 16'7.5". Serial# WHA22-087-2-2-C. National Board #573. Feed/Effluent exchanger. Under Nitrogen Purged.

Unused 333 sq. ft. Duplex 2205 SS horizontal heat exchanger. 7.9 Design duty (MMBTU/Hr). Mfg. by Wuxi Chemical Equipment (China) in 2023. Shell Design Rating: 370/FV psig @ 300 deg. F. Tube Design Rating: 285/FV psig @ 330 deg. F. Shell mawp 662.3/FV psig @ 300 deg. F. Tube mawp 288.3/FV @ 330 deg. F. 15.5" X 16'7.5". Serial# WHA22-087-2-2-D. National Board #574. Feed/Effluent exchanger. Under Nitrogen Purged.

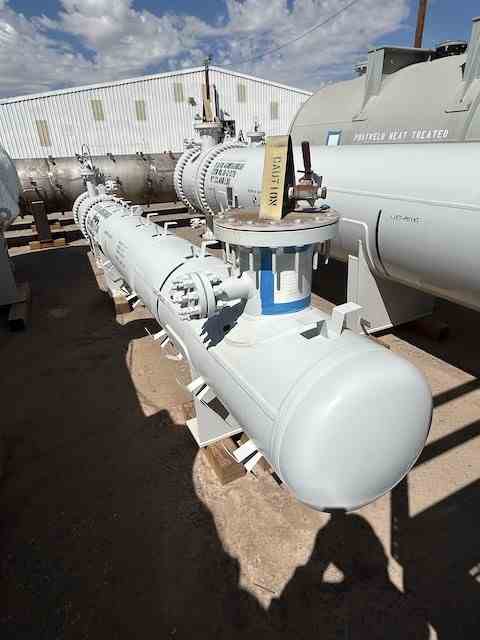

Unused 284 sq. ft. Duplex 2205 SS Horizontal heat exchanger. Mfg by Fabsco Shell and Tube. 2.32 Design duty (MMBTU/Hr). Shell Design Rating: 95/FV psi @ 300 deg. F. Tube Design Rating: 120 psi @ 150 deg. F. Shell mawp 265FV @ 300 deg. F. Duplex 2205 Stainless steel Tube mawp 150 psi @ 150 deg. F. 21" X 168". Serial #S21-132586-7. National Board #11171. Built 2023. Propane Recovery Compressor Interstage Cooler. Under Nitrogen Purge.

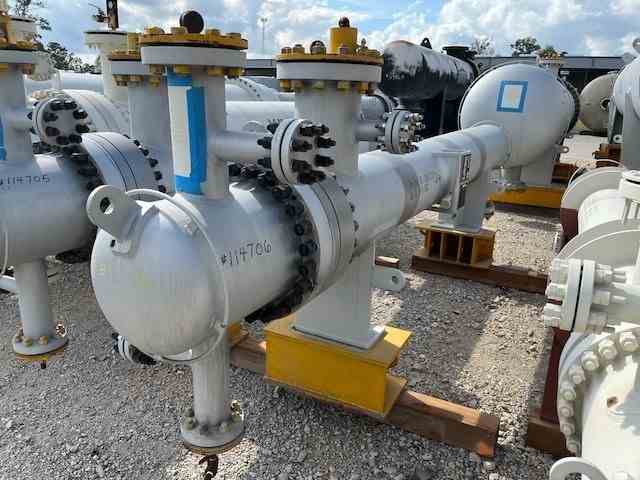

Unused 272 sq. ft. 316L SS horizontal shell and tube heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 4.1 Design duty (MMBTU/Hr). Shell Design Rating: 180/FV psig @ 430/300 deg. F. Tube Design Rating: 232/FV psig@ 430/400 deg. F. Shell mawp 186.7/FV psig. Tube mawp 532/FV psig. 15.5" X 126". Serial #WHA22-026-1. National Board #512. Recirculating exchanger. Nitrogen Purged.

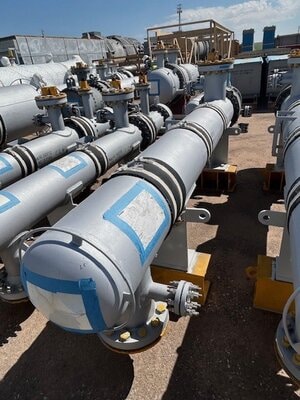

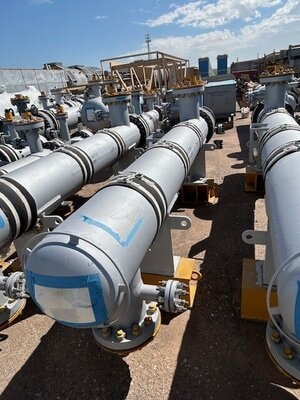

Unused 234 sq. ft. 316L Stainless Steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 3.6 Design duty (MMBTU/Hr). 316L SS Shell Design Rating: 180/FV psig @ 430/300 deg. F. Duplex 2205 SS Tube Design Rating: 232/FV psig @ 430/400 deg. F. Shell mawp 186.7/FV psig @ 430 deg. F. Tube mawp 532/FV psig @ 430 deg. F. 15.5" X 108". Serial #WHA22-030-1. National Board #531. T-125001 Recirculating exchanger. Under Nitrogen.

Unused 234 sq. ft. 316L Stainless Steel horizontal shell and tube heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 3.6 Design duty (MMBTU/Hr). Shell Design Rating: 180/FV psig @ 430/300 deg. F. Tube Design Rating: 232/FV psig @ 430/400 deg. F. Shell mawp 186.7/FV psig. Tube mawp 532/FV psig. 5.5" X 108". Serial # WHA22-024-1. National Board #529. Recirculating exchanger. Under Nitrogen Purge.

Unused 234 sq. ft. 2205 Duplex SS horizontal shell and tube heat exchanger. Mfg. by Wuxi Chemical Equipment 2023. 3.6 Design duty (MMBTU/Hr). Shell Design Rating: 180/FV psig @ 430/300 deg. F. Tube Design Rating: 232/FV psig @ 430/400 deg. F. Shell mawp 186.7/FV psig. Tube mawp 532/FV psig. 15.5" 108". Serial #WHA22-025-1. National Board #530. Recirculating exchanger. Under Nitrogen Purged.

Unused 108 sq. ft. 304 Stainless steel vertical shell and tube heat exchanger. (4.5 MMBTU/Hr). Manufactured by Wuxi Chemical Equipment in 2023. Both 304SS shell and tube rated 174 psi @ 428 °F. Dimensions: 10? × 10'0?. Designes as hot water tank heater. Serial #WZA21-24; NB #155. Under Nitrogen Purge

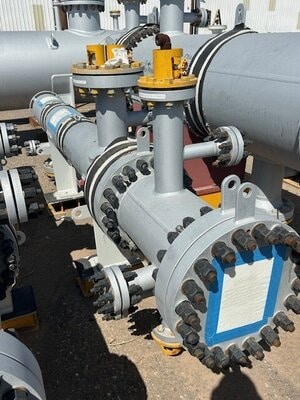

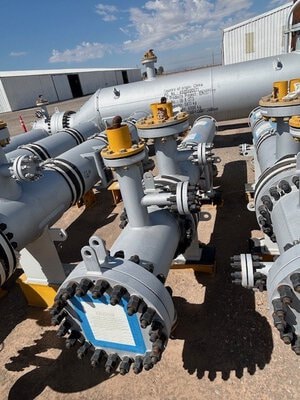

Unused 103 sq. ft. 316L SS horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 1.3 Design duty (MMBTU/Hr). 316L Stainless Steel Shell Design Rating : 220/FV psig @ 430/300 deg. F. Duplex 2205 SS Tube Design Rating: 232/FV psig @ 430/400 deg. F. Shell mawp 412/FV psig @ 430 deg. F. Tube mawp 512.1/FV psig @ 430 deg. F. 12.25" X 84". Serial #WHA22-027-1. National Board #505. Recirculating exchanger. Under Nitrogen Purged.

Unused 103 sq. ft. 316L Stainless Steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 1.3 Design duty (MMBTU/Hr). 316L SS Shell Design Rating : 220/FV psig @ 430/300 deg. F. Duplex 2205 SS Tube Design Rating: 232/FV psig @430/400 deg. F. Shell mawp 412/FV psig @ 430 deg. F. Tube mawp 512.1/FV psig @ 430 deg. F. 12.25" X 84". Serial #WHA22-028-1. National Board #506. T-20002 Recirculating exchanger. Under Nitrogen Purged.

Unused 103 sq. ft. 316L Stainless Steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment. 1.3 Design duty (MMBTU/Hr). 316L Stainless Steel Shell Design Rating : 220/FV psig @ 430/300 deg. F. Duplex 2205 Tube Design Rating: 232/FV psig @430/400 deg. F. Shell mawp 412/FV psig @ 430 deg. F. Tube mawp 512.1/FV psig @ 430 deg. F. 12.25" X 84". Serial #WHA22-029-1. National Board #507. Built 2023. T-20002 Recirculating exchanger. Under Nitrogen Purged.

Unused 87 sq. ft. Carbon steel heat exchanger. Mfg. by Wuxi Chemical Equipment. 0.19 Design duty (MMBTU/Hr). Shell Design Rating: 160/FV psig @ 300 deg. F. Tube Design Rating: 125 psig @ 150 deg. F. Shell mawp 626.7/FV psig @ 300 deg. F. Tube mawp 250.1 psig @ 150 deg. F. 10.136" X 144". Serial #WHA22-092-1. National Board #551. Built 2023. Aqua-Ammonia Cooler. Under Nitrogen Purged.

Unused 47 sq. ft. 316L Stainless steel heat exchanger. Mfg. by Wuxi Chemical Equipment in 2023. 0.099 Design duty (MMBTU/Hr). Shell Design Rating: 220/FV psig @ 300 deg. F. Tube Design Rating: 170 psig @ 150 deg. F. 316L SS Shell mawp 454.6/FV psig @ 300 deg. F. Duplex 2205 SS Tubes mawp 308.2 psig @ 150 deg. F. 7.981" X 84". Serial # WHA22-093-1. National Board #560. Caustic Cooler. Under Nitrogen Purged.

Unused 22 sq. ft. Duplex 2250 stainless steel horizontal heat exchanger. Mfg. by Wuxi Chemical Equipment. .25 Design duty (MMBTU/Hr). CS Shell Design Rating: 180/FV psig @ 430/300 deg. F. Duplex 2205 SS Tube Design Rating: 232/FV psig @ 430/400 deg. F. Shell mawp 412.2/FV psig@ 430 deg. F. Tube mawp 532.3/FV psig @ 430 deg. F. 7.891" X 72". Serial #WHA22-122-1. National Board #547. Built 2023. T-2002 Recirculating Exchanger. Nitrogen Purged
