Centrifugal Compressors for Sale

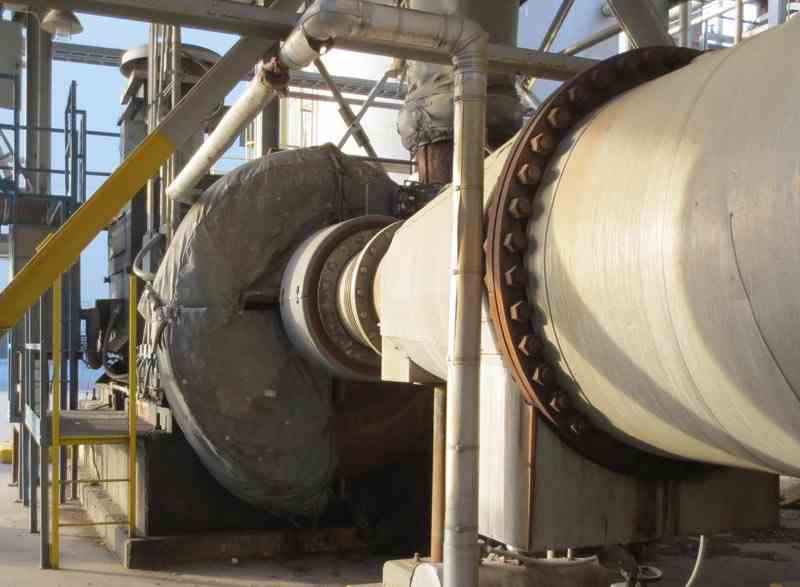

Used 49375 CFM Single stage centrifugal Mechanical Vapor Recompression (MVR) compressor manufactured by AC Compressor Corporation (Model D24JR). Rated speed: 6012 RPM, temperature: 217 F, pressure: 15 psi, discharge pressure: 22.9 PSIA. available. Includes buffer/educt labyrinth shaft seals, 2000 HP reliance squirrel cage induction electric motor (1800rpm, 4000V/249A), motor starter and remote oiler.

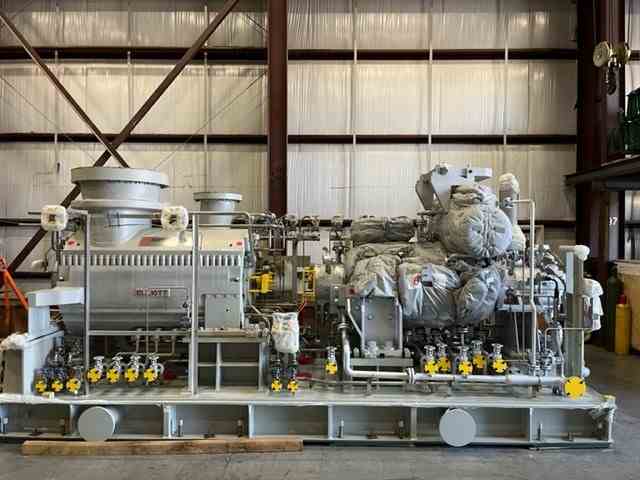

Unused 19400 CFM Elliott Compressor with Steam Turbine skid. Consisting of Elliot Centrifugal compressor: Model 32M4. Design Inlet Pressure: 15 psia. Design Inlet Temp: 35F. Design Discharge Pressure: 77-90 psia. 17862 CFM - 19400 CFM. Design Speed: 6516 to 7178 RPM. POS-E-Coat 523 on rotor and diaphragms. Kingsbury LEG bearings with instrumentation (Thrust). Elliott TPJ. John Crane T28 gas seals. Inlet Flange size: 12" 600#. Discharge Flange: 30" 600#. Unused 3399HP Elliott Steam Turbine. Model SRV4. Inlet Condition: 150 PSIG @ 420F. Exhaust: 15 PSIG @ 250F. 3399 HP. 7176 RPM. Skid Serial #20E511ATC1J. Built 2022. Overall Skid DImensions 234.44" x 111.86"W x 110.72"H. 71850 lb.

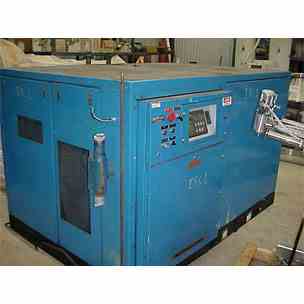

Used 435 CFM Ingersoll Rand Compressor, Model # OCV4M2E, Serial # M926391. 100 PSI outlet, 14.2 PSI inlet. Unit driven by Reliance 125 HP, 3575 RPM, 460V motor. Complete with air dryer rated 150 PSI, mdl# PS475CR7SP, s/n 913PS064.
