Shell and Tube Heat Exchangers - A Beginner's Guide

Overview

Heat exchangers are critical devices used across a wide range of industries for the transfer of thermal energy between two or more fluids. The shell and tube heat exchanger is a particularly common and adaptable type. This guide offers a comprehensive introduction to these exchangers, focusing on their design and how they function.

Understanding the Basics

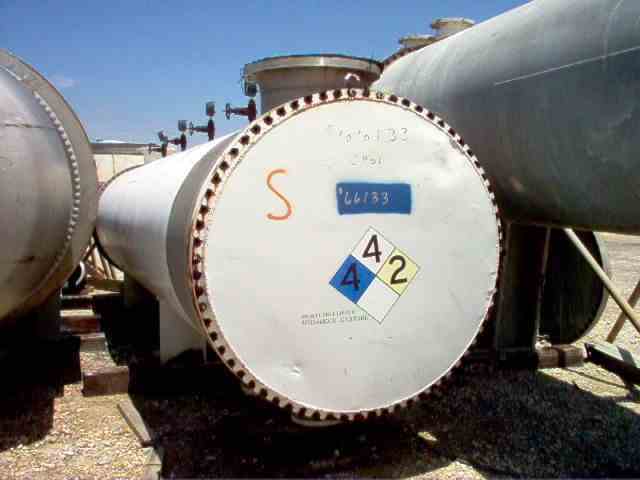

The fundamental concept of a shell and tube heat exchanger involves a shell, which is essentially a pressure vessel, containing a bundle of tubes. One fluid is directed to flow through the interior of these tubes, while the second fluid circulates around the outside of the tubes within the shell. The exchange of heat occurs through the walls of the tubes, allowing energy to move from the hotter fluid to the colder one.

Components and Their Functions

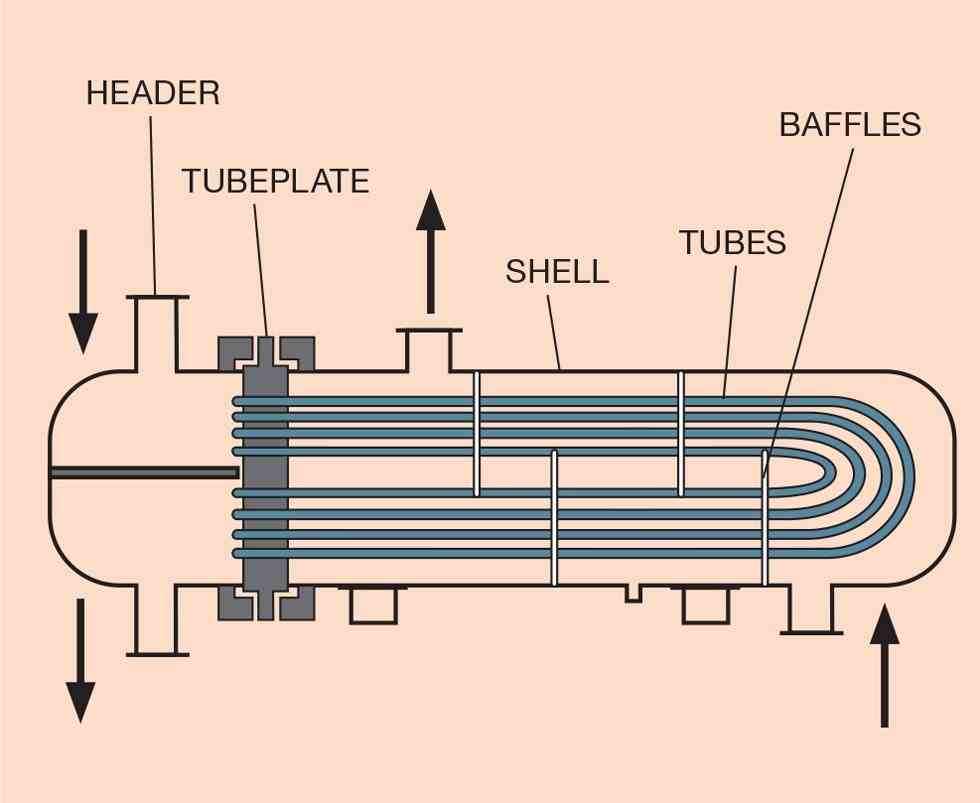

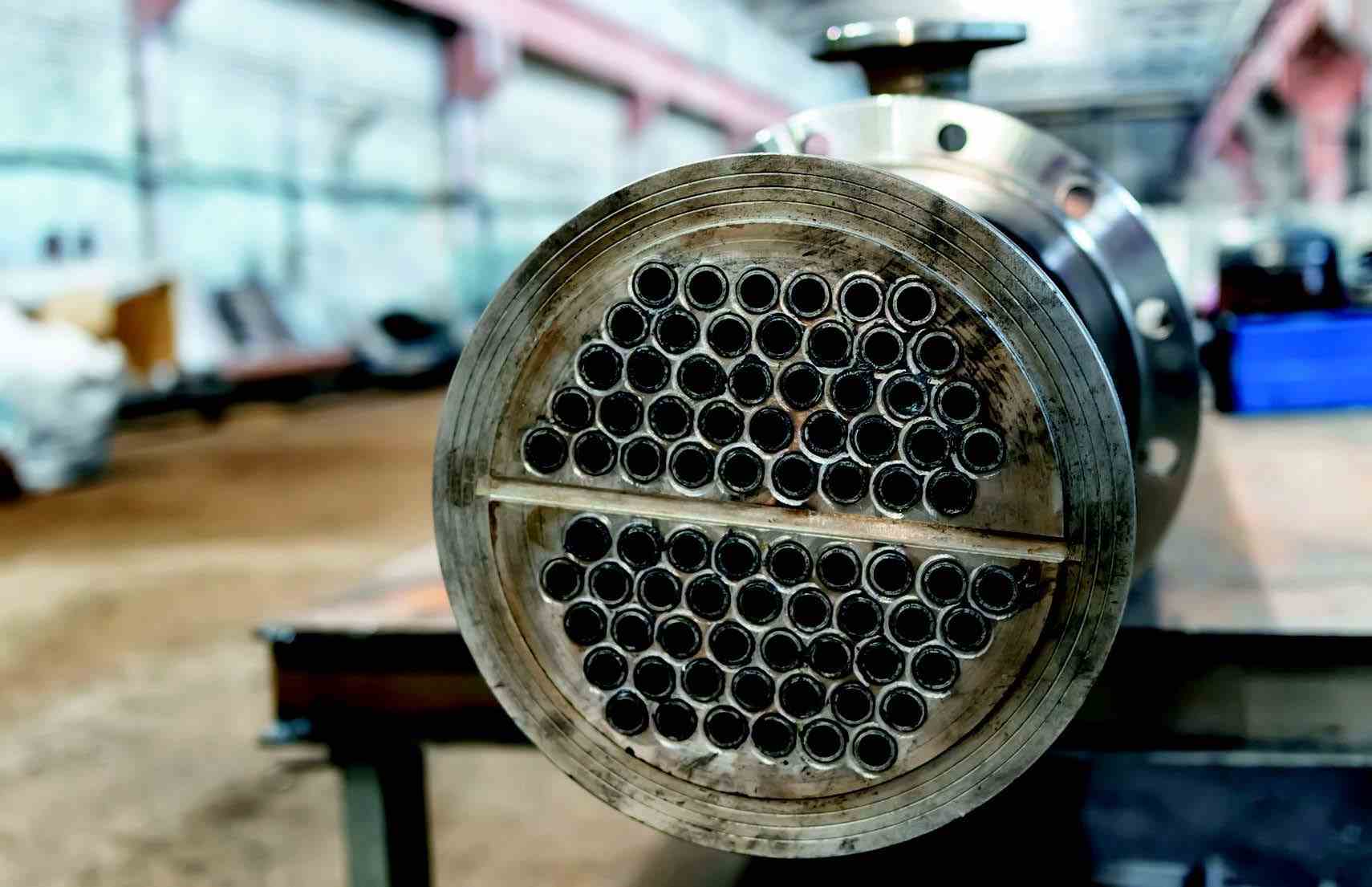

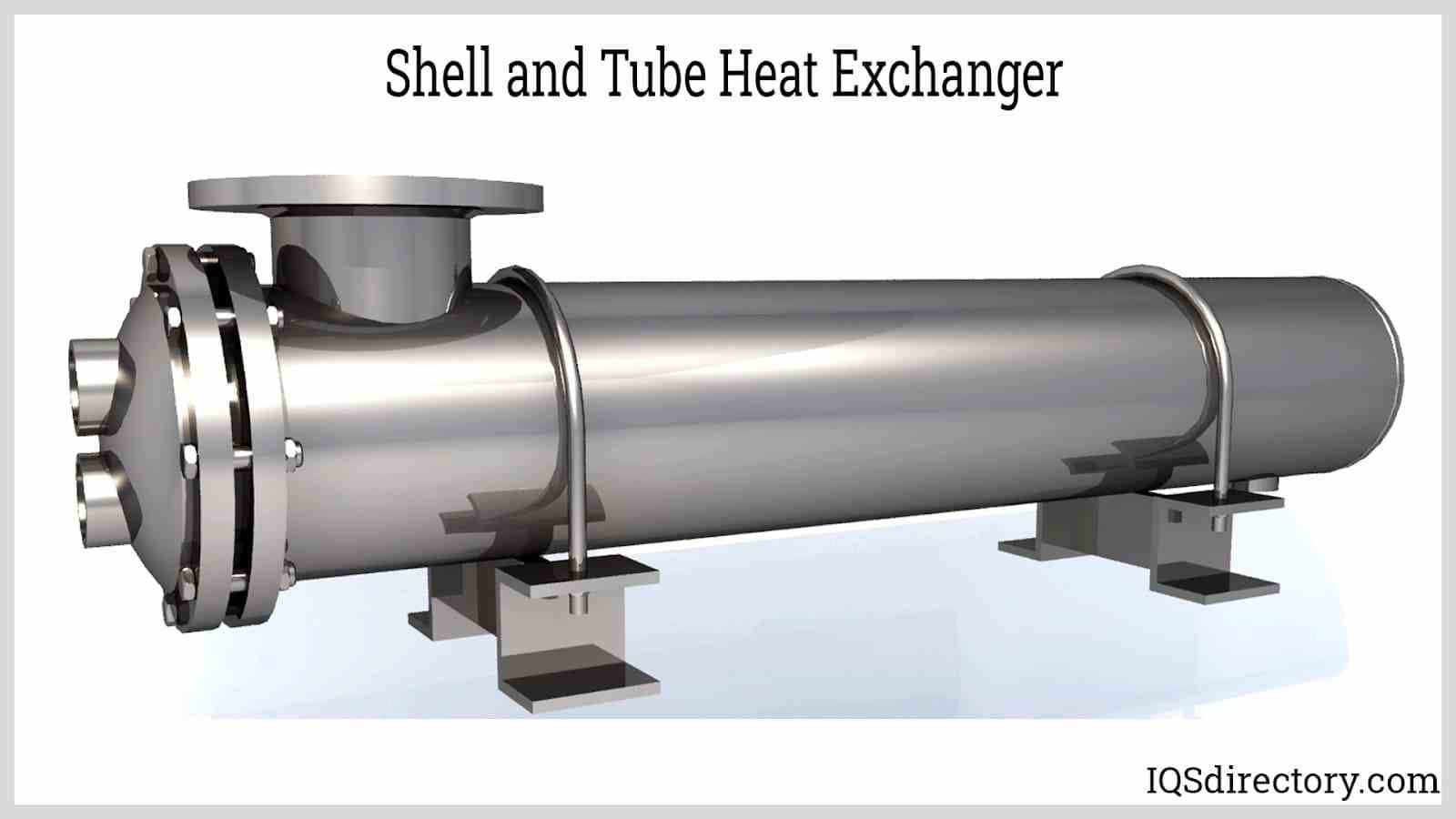

Several key components are essential to the operation of a shell and tube heat exchanger. The shell itself is the outer container, typically cylindrical, designed to withstand the pressures of the fluids and to guide the flow of the fluid on the shell side. The tubes are the conduits for one of the fluids, arranged in a bundle to maximize the surface area available for heat transfer. Tube sheets are flat plates located at each end of the shell, and they securely hold the tubes and prevent leakage between the fluids. Baffles are internal plates within the shell that direct the flow of the shell-side fluid across the tubes, increasing turbulence and improving heat transfer efficiency. Finally, channels and heads are end caps attached to the shell, which serve to direct the tube-side fluid into and out of the tubes.

The Heat Exchange Process

The process within a shell and tube heat exchanger is a continuous cycle of fluid flow and heat transfer. Initially, the fluids enter the exchanger; one flows into and through the tubes, while the other flows into the shell and around the tubes. As they move through the exchanger, heat transfers from the hotter fluid to the colder fluid through the tube walls. The effectiveness of this heat transfer is influenced by factors such as the rate at which the fluids flow, the difference in temperature between them, and specific design elements of the exchanger, like the arrangement of the tubes and the design of the baffles. Ultimately, the fluids exit the exchanger at altered temperatures, reflecting whether they gained or lost heat.

Flow Arrangements

The design of shell and tube heat exchangers allows for different flow arrangements, each with implications for heat transfer efficiency. In parallel flow, both fluids travel in the same direction; in counterflow, they move in opposite directions (counterflow is generally more efficient); and in crossflow, the fluids flow perpendicular to each other.

Applications and Industries

Shell and tube heat exchangers are used across many industries because they can handle high pressures and temperatures, are robust, and offer a large surface area for heat transfer. Common applications are found in chemical processing, oil refining, power generation, and HVAC systems.

In summary, shell and tube heat exchangers are versatile and vital in numerous industrial settings. A good understanding of their design and operation is important for professionals in these fields.
