Nitrogen Plant - 7000 Nm3/hr

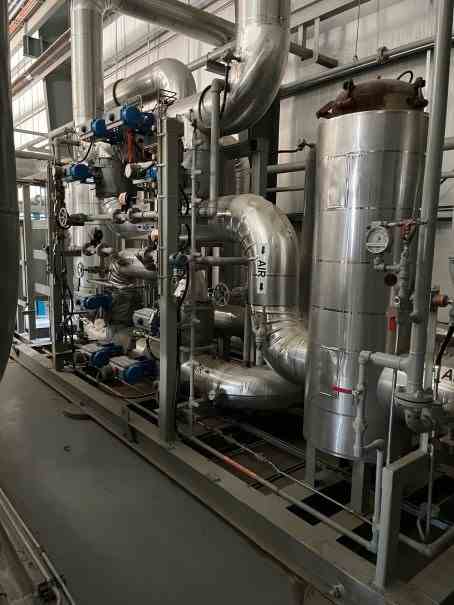

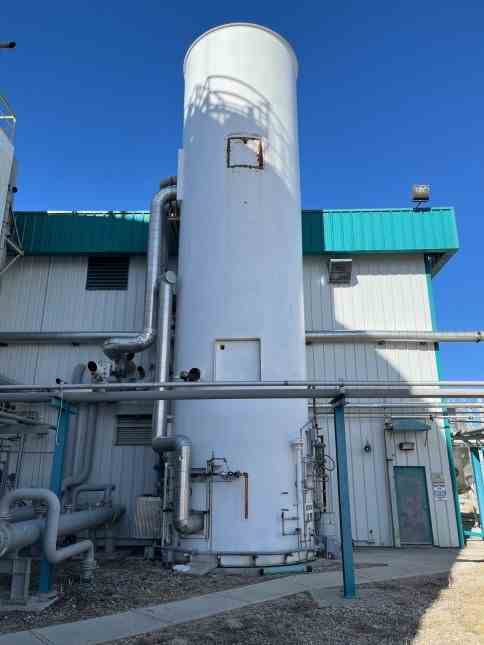

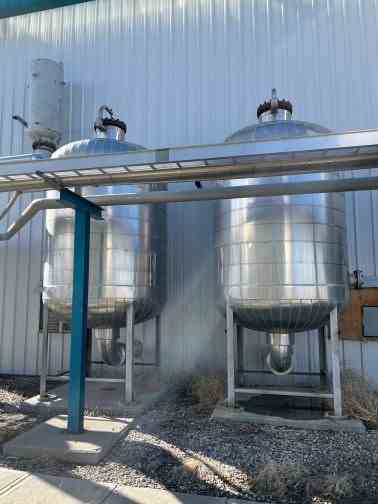

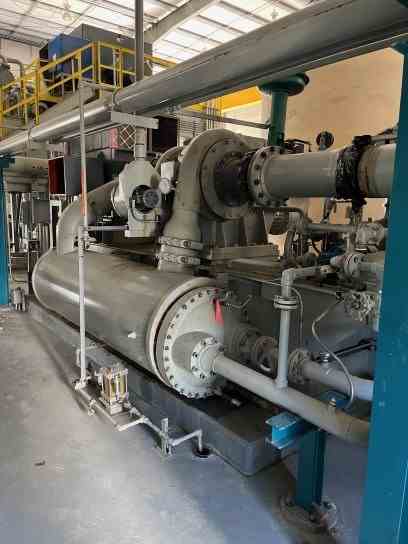

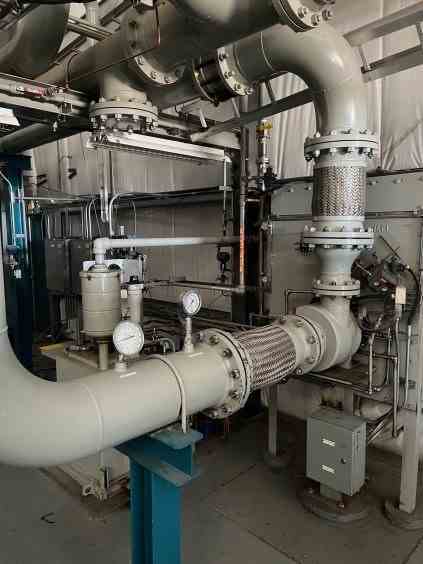

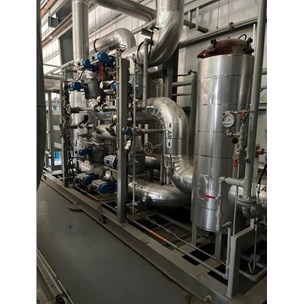

Other Views - click image for larger view
Nitrogen Plant - 7000 Nm3/hr Nitrogen Plant - 7000 Nm3/hr Nitrogen Plant - 7000 Nm3/hr Nitrogen Plant - 7000 Nm3/hr

Nitrogen Plant - 7000 Nm3/hr

Stock # 607
Capacity 7000 Nm3/hr
Products Nitrogen

Overview

Used 6 MMSCFD (7000 Nm3/hr) nitrogen plant designed by Air Products. Gaseous N2 product delivered at pressure of 2.5 PSIG (6.0 Kg/cm2). A 3-stage feed compressor is included in the sale package. It can boost the N2 gas product to 55 PSIG. The plant also generates a small stream of liquid nitrogen. The plant stopped production in 2018 and has been maintained in excellent condition.

Major Equipment

- Air inlet filter
- 2-stage air compressor
- Intercoolers
- Aftercoolers
- 3-stage feed compressor
- 4-stage recycle compressor
- Evaporator
- Drier separator
- Molecular sieve absorber
- High pressure column
- Reboiler
- After filter
- Regen gas heater
- Guard absorber
- Heat pump
- Gas bearing expander
- Heat exchanger
Share
SPECIFICATIONS RESOURCES
Year Built 2004
Year Shut 2018
Capacity 7000 Nm3/hr
Plant Design/Technology Air Products and Chemicals
Raw Material Air
Products Nitrogen
Subcategory Air Gas (N2, O2, Ar) Plants
