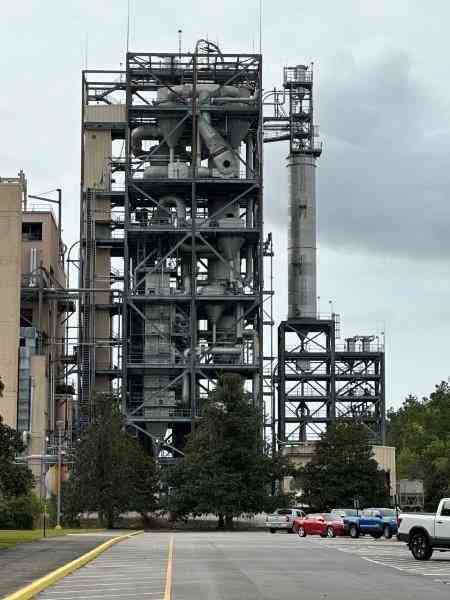

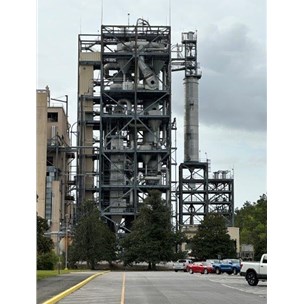

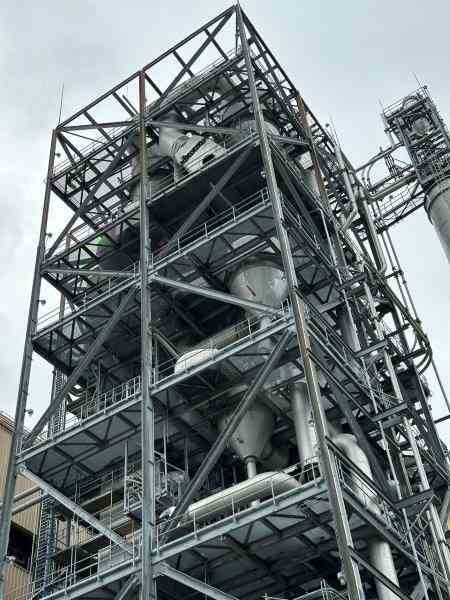

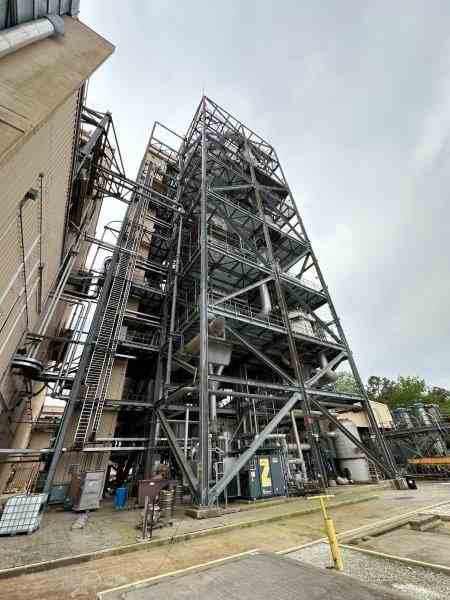

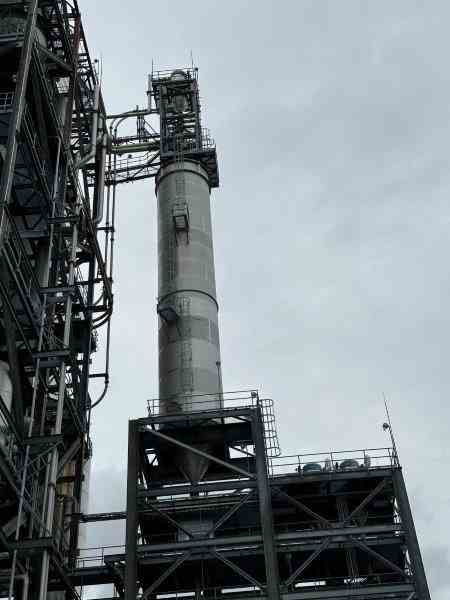

PET SSP (Solid-State Polycondensation) Plant - 450 TPD
Other Views - click image for larger view
PET SSP (Solid-State Polycondensation) Plant - 450 TPD PET SSP (Solid-State Polycondensation) Plant - 450 TPD PET SSP (Solid-State Polycondensation) Plant - 450 TPD

PET SSP (Solid-State Polycondensation) Plant - 450 TPD

Stock # 602
Capacity 450 TPD
Products High Intrinsic Viscosity (IV) Polyethylene Terephthalate (PET) Chips

Overview

450 TPD PET SSP (Solid-State Polycondensation) plant. Consisting of four-step process for polymer enhancement. The process begins with Crystallization, where amorphous PET chips are transformed into a crystalline form using a Spout Bed Heat Exchanger (OTWR) in the Pre-crystallizer, followed by a PULSBED fluid-bed heat exchanger (OTWG) in the Crystallizer. Next, the Preheating stage employs a Vertical Flow Roof Heat Exchanger (OKTD) to raise the temperature of the crystalline chips to near-reaction conditions. In the third step, Solid-State Polycondensation (SSP) occurs in a Vertical Mass Flow Reactor (OKTN), where molecular weight increases through controlled diffusion-driven reactions under vacuum or inert gas. Finally, the process concludes with Cooling, again utilizing the PULSBED fluid-bed heat exchanger (OTWG) to stabilize the material before downstream handling.

Major Equipment

Crystallization Section
Preheating Section
Solid-State Polycondensation Section
Cooling Section
Share
SPECIFICATIONS RESOURCES
Year Built 2003
Year Shut 2023
Capacity 450 TPD
Plant Design/Technology Buhler
Raw Material Amorphous PET Pellets (aPET)
Products High Intrinsic Viscosity (IV) Polyethylene Terephthalate (PET) Chips
Subcategory Polyethylene Terephthalate (PET) Plants
