PET Staple Fiber Plant - 40 TPD

Stock # 507
Capacity 40 TPD
Products PET Staple Fiber

Overview

Used PET staple fiber plant supplied by Neumag of Germany. Layout titer 1.2 den; spin pack size 410 mm; No. of holes 6800; spinning speed 1210 m/min; spinning positions 8. Extruder throughput range 8 - 12 kg/h; screw size 30 mm, 24 L/D; cylinder heating 3 zones / 10 KW; AC motor 8 KW; polymer pipeline max length 5 m. Polymer distribution pipeline (double jacket, HTM vapor heated) 1 X 8 Pos. Spinning pitch 600 mm; spinning pump 161 cm3/rev. Spinnerets dia 410 mm (8 in operation and 16 standby), 6-10 den for titer, 1860 holes, round and hollow profile. The plant has Siemens PLC control system. All technical documents are available. The plant can use recycled PET flakes as feedstock. Two (2) extruders manufactured in 2023 are included in the sale package. Each extruder has flow / production capacity of 1,500 Kg/hr; and LD38 thread with 6,000 mm; pressure up to 200 Bar; with a 170 mm diameter screw; using Gneuss/150 filters.

Major Equipment

Metering and mixing system
Extruders to process recycled PET flakes
Polymer filter
Polymer injection device
Polymer distribution pipeline
Spinning pump
Spin packs and spinnerets

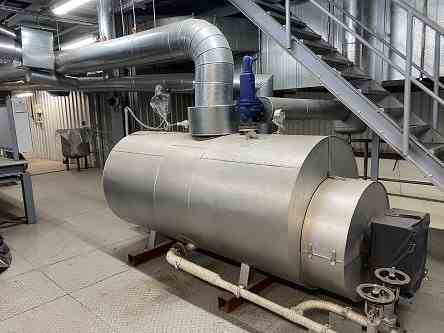

HTM vapor generator

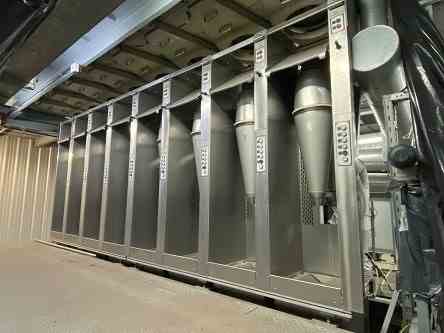

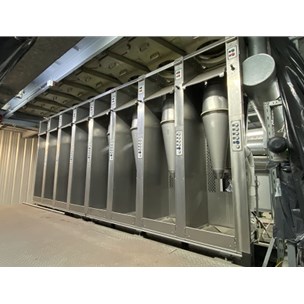

Quench air chambers
Air supply and exhaust system
Spin finish unit
Spin pack mounting and transporting device
Fiber draw-off wall
Feed roller assembly
Sunflower wheel
Can traversing unit
Share
SPECIFICATIONS RESOURCES
Year Built 2017
Year Shut 2018
Capacity 40 TPD
Plant Design/Technology Neumag
Raw Material Textile-grade PET or recycled PET flakes
Products PET Staple Fiber
Subcategory Polyethylene Terephthalate (PET) Plants
