28216 Gal Equipromex Pressure Vessel
Other Views - click image for larger view
28216 Gal Equipromex Pressure Vessel 28216 Gal Equipromex Pressure Vessel 28216 Gal Equipromex Pressure Vessel

28216 gal equipromex pressure vessel

Stock # 22540
Capacity 28216 Gal

Overview

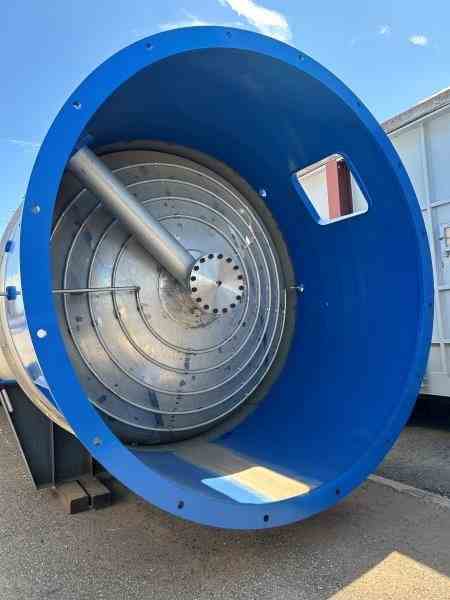

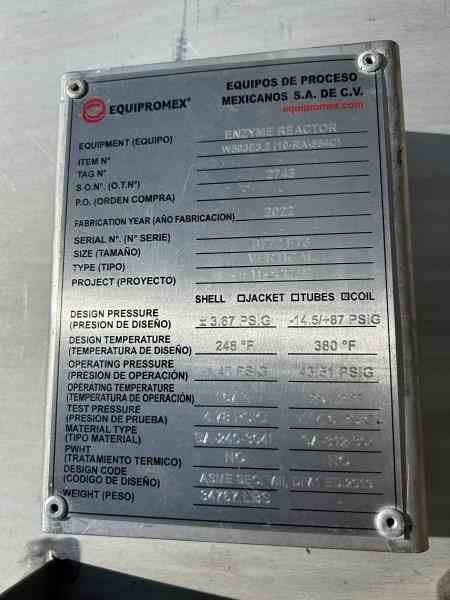

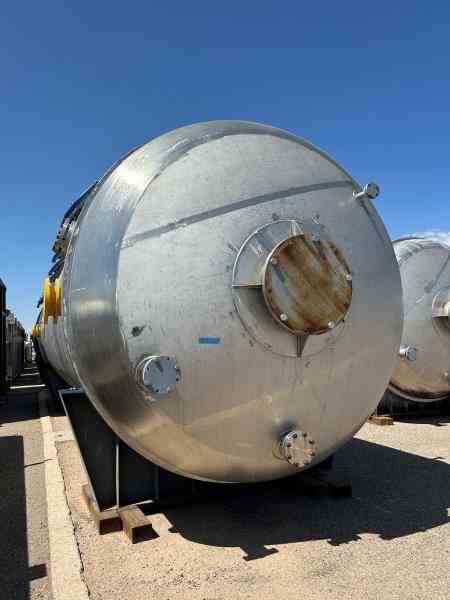

Unused 28,216 gallon 304L Stainless steel vertical pressure vessel. Manufactured by Equipromex (Mexico). Internal rated 3.7PSI/FV @248F. 304 SS Coil rated 87PSI/FV @380F. 11'6"ID x 32'10"T/T. Agitator: Mfg. by Chemineer Model #23GTL-7.5, 7.5 hp, 1800 rpm input, 16.5 rpm output, 230/460 volts. (5) manways with davit arms. Dished top and bottom. Skirt mounted. 36,288 lbs weight. Built 2022. Designed as Enzyme Reactor.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Equipromex
Model
na
Material
Unknown
Capacity
28216 Gal
Subcategory
