Unused 12500 Gallon Stainless Steel Reactor
Other Views - click image for larger view
Unused 12500 Gallon Stainless Steel Reactor Unused 12500 Gallon Stainless Steel Reactor Unused 12500 Gallon Stainless Steel Reactor Unused 12500 Gallon Stainless Steel Reactor

unused 12500 gallon stainless steel reactor

Stock # 22181
Capacity 12500 Gal

Overview

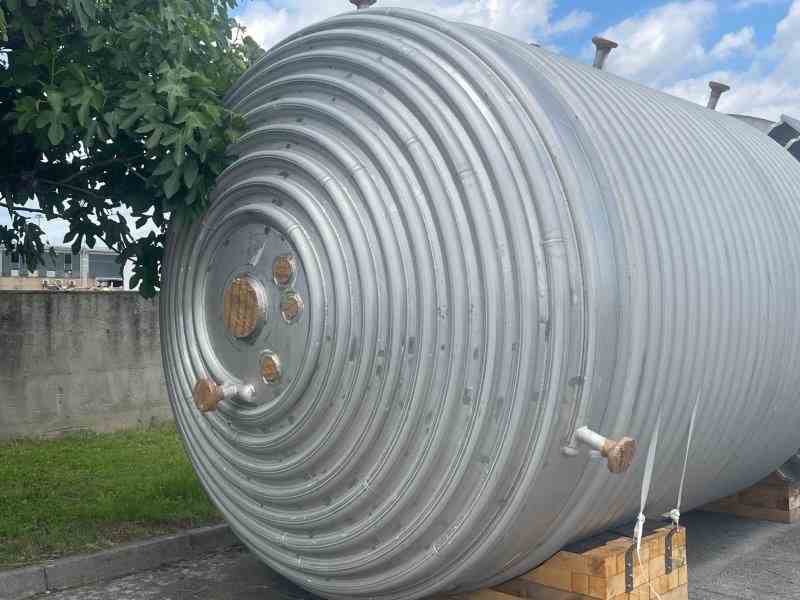

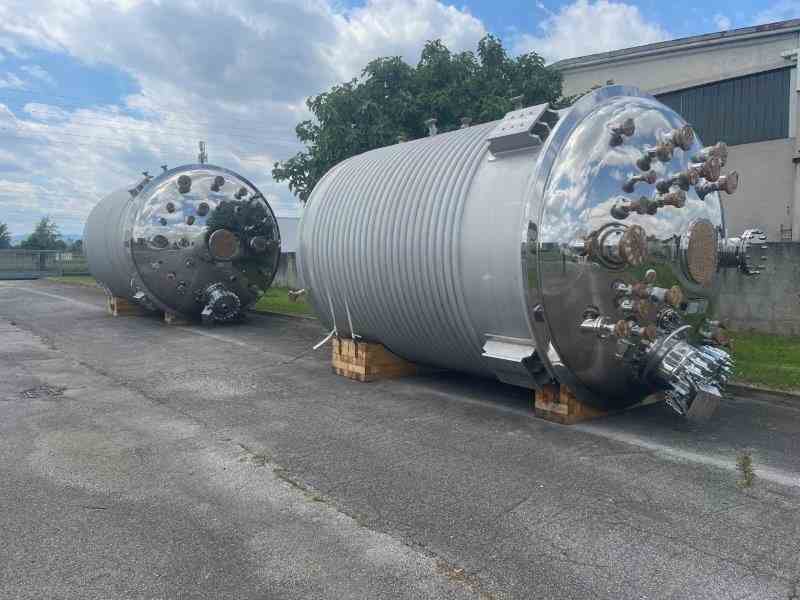

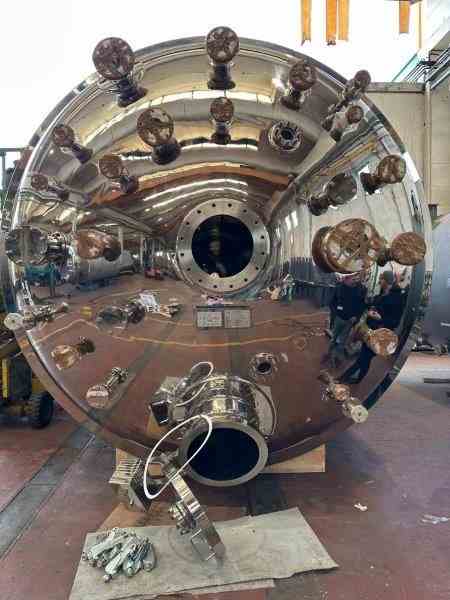

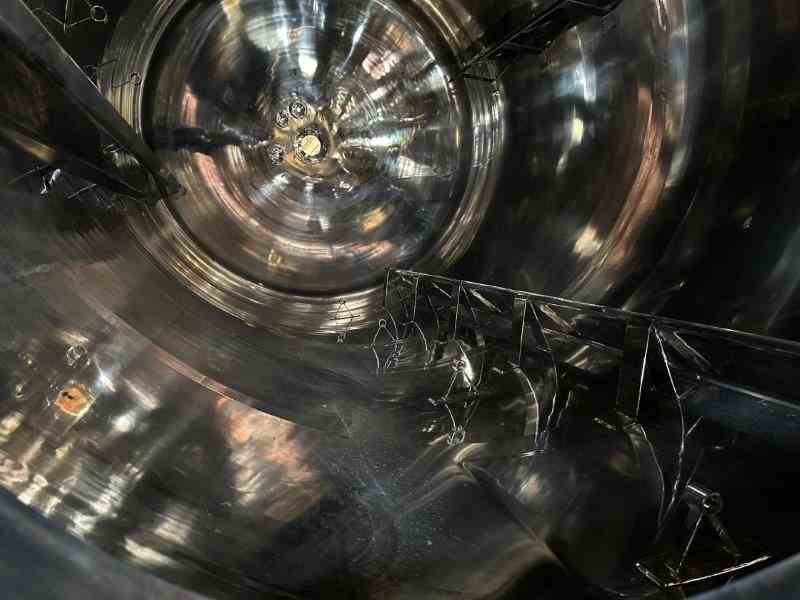

Unused 12,586-gallon 304L stainless steel reactor. Internal MAWP 87 psi @399°F. Halfpipe MAWP 174 psi @399°F. Half Pipe on bottom half of shell and bottom head. Sanitary polished internal and exterior top shell. 11.15 ft Dia x, 19.69 ft tall. Weight 28660 lbs. ASME, U-Stamp and PED (Double certification). Ready to be equipped with agitator (top flange and internal baffles). Built 2024.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Unknown
Model
NA
Material
Stainless Steel
Capacity
12500 Gal
Category
