4000 Gal Walker 316L Stainless Steel Kettle
Other Views - click image for larger view
4000 Gal Walker 316L Stainless Steel Kettle 4000 Gal Walker 316L Stainless Steel Kettle

4000 gal walker 316l stainless steel kettle

Stock # 22149
Capacity 4000 Gal

Overview

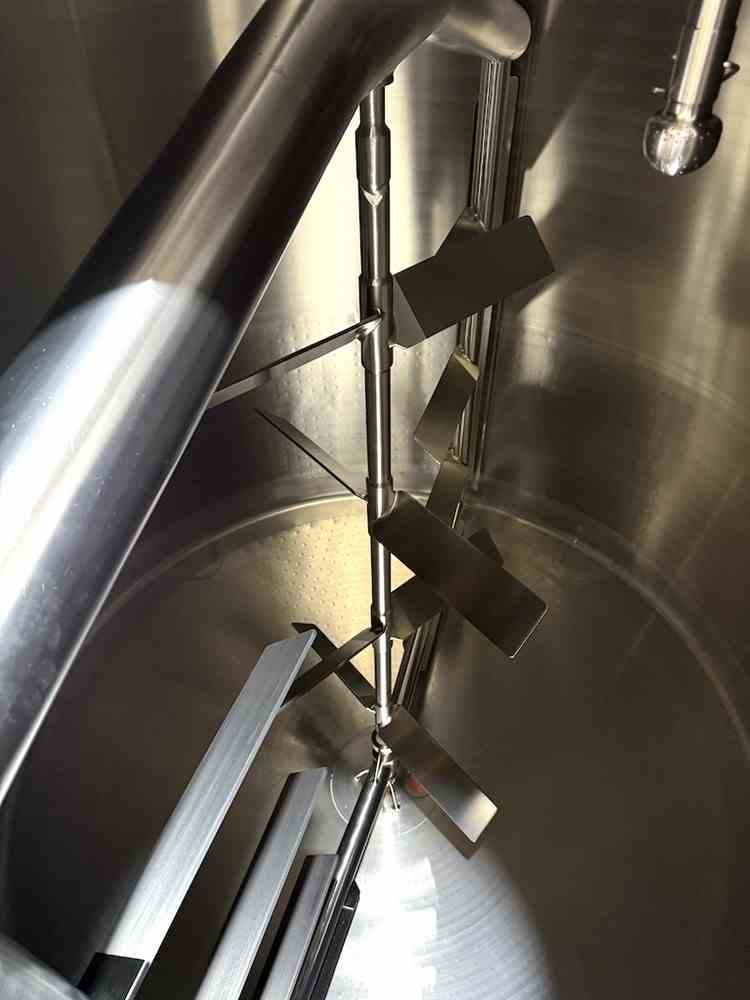

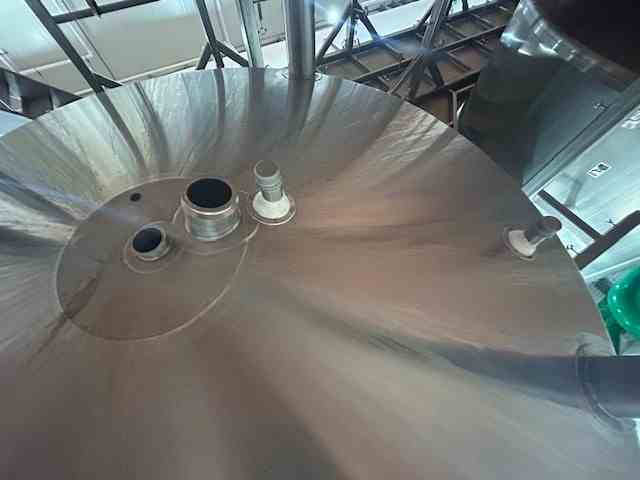

Used 4000 Gallon 316L stainless steel kettle. Manufactured by Walker. Model PZ-CB-CXR. Dished top and bottom heads. Atmospheric Internal. Jacket rated 75 PSI @ 320 degrees F., -20 @ 75 PSI, Jacketed sides and bottom, Double motion agit sweep 5 HP, 15 RPM, 10 HP 60 RPM (4) 2 prop agitator blades, Both motor 3/60/230/460v, (4) 3 1/2" tri clover top inlets, (1) 4" breather, 20" top manway with CIP spray balls, (4) stainless steel legs. Vessel 9' 5" diameter 10' Overall Dia with inlets for jacket X 16' high. #4 Sanitary Polished welds inside and out. Serial numbers WEP-40395-20 National Board #7963 and WEP-40394-10, National Board # 7965. Built 2018. Last used for food product. (2) Available

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Walker
Model
PZ-CB-CXR
Material
316L Stainless Steel
Capacity
4000 Gal
