6000 Gal Walker 316L Stainless Steel Kettle
Other Views - click image for larger view
6000 Gal Walker 316L Stainless Steel Kettle 6000 Gal Walker 316L Stainless Steel Kettle 6000 Gal Walker 316L Stainless Steel Kettle 6000 Gal Walker 316L Stainless Steel Kettle

6000 gal walker 316l stainless steel kettle

Stock # 22148
Capacity 6000 Gal

Overview

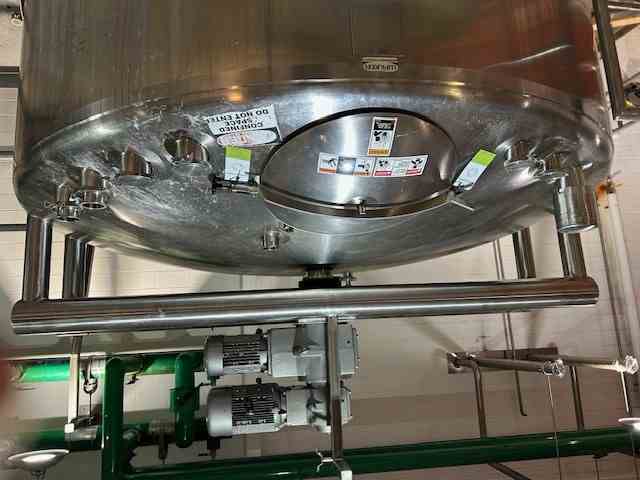

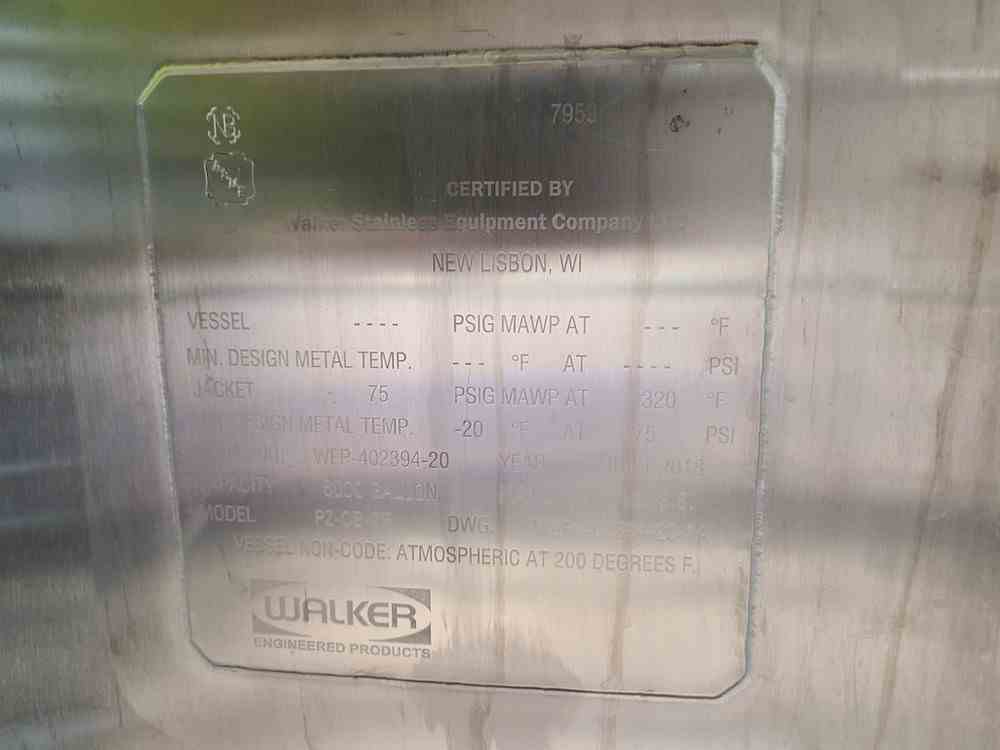

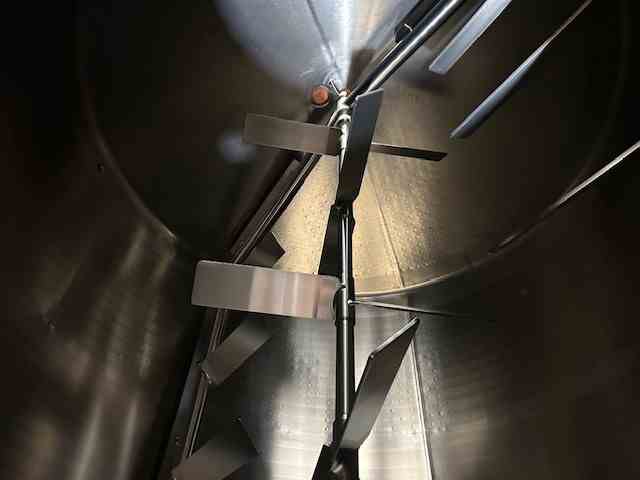

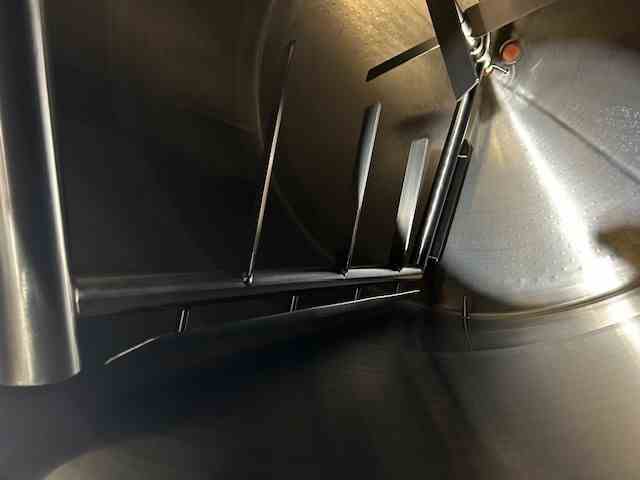

Used 6000 Gallon 316L stainless steel kettle. Manufactured by Walker. Model PZ-CB-SP. Atmospheric Internal. Jacket rated 75 PSI @ 320F. Jacketed sides and bottom. Top off center mounted 20 HP, 155 RPM, 3/60/230/460v, single motion with (3) 4 prop agitators blades. (6) 3 1/2 " tri clover top inlets, (1) 4" breather, 20" manway, dished top and bottom, with CIP spray balls. Vessel 11'6 diameter (12' 2" overall dia). X 15'4" high. #4 Polished inside and out. (4) stainless steel legs. Last used for food product. Serial # WEP-40294-10, National board #7968 and WEP-40294-20, National board #7959. Built 2018. (2) Available

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Walker
Model
PZ-CB-SP
Material
316L Stainless Steel
Capacity
6000 Gal

For additional information, visit the Resource Center
